My Science Fair Board, Robots, and Awards

Meet the Bots

Feeler Bot

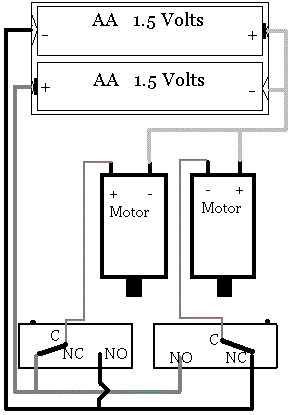

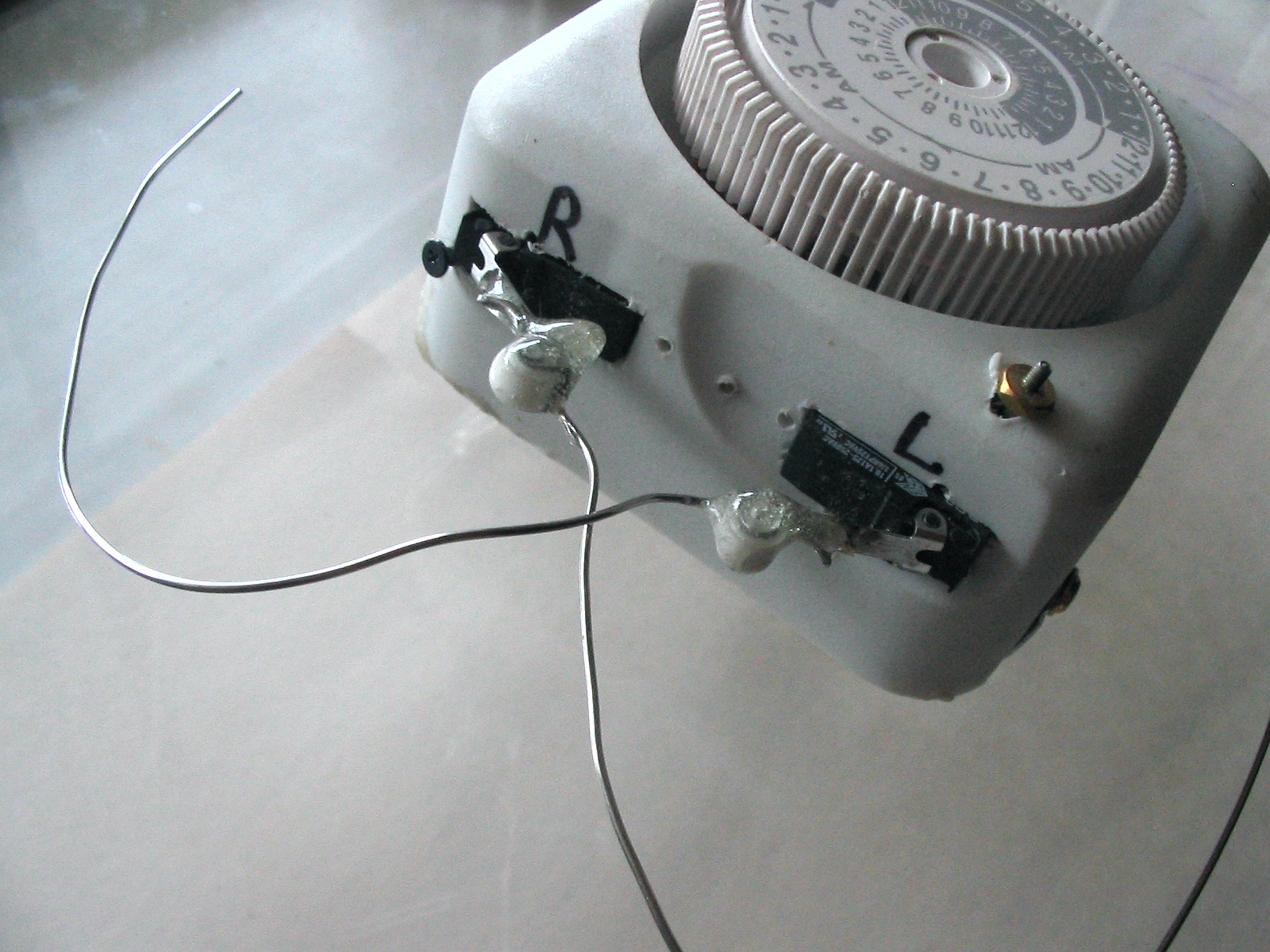

feellerbotpic1feelerbotschmaticFeeler bot is a simple robot which turns away from an obstacle if its whiskers hit it. Cost $.42
Parts used: (Bolded parts are from trash) 2 switches from a switch module, power switch from broken CD player, 2 motors from broken motorized toys, battery holder from an old radio kit, spring wire, 10 screws from several different items, timer case is an old timer, metal strip from old attic vent, pinch roller from old VCR, wires(all) are telephone wire, epoxy $.30, heat shrink $.10, electrical tape $.01, solder $.01


Solar Roller

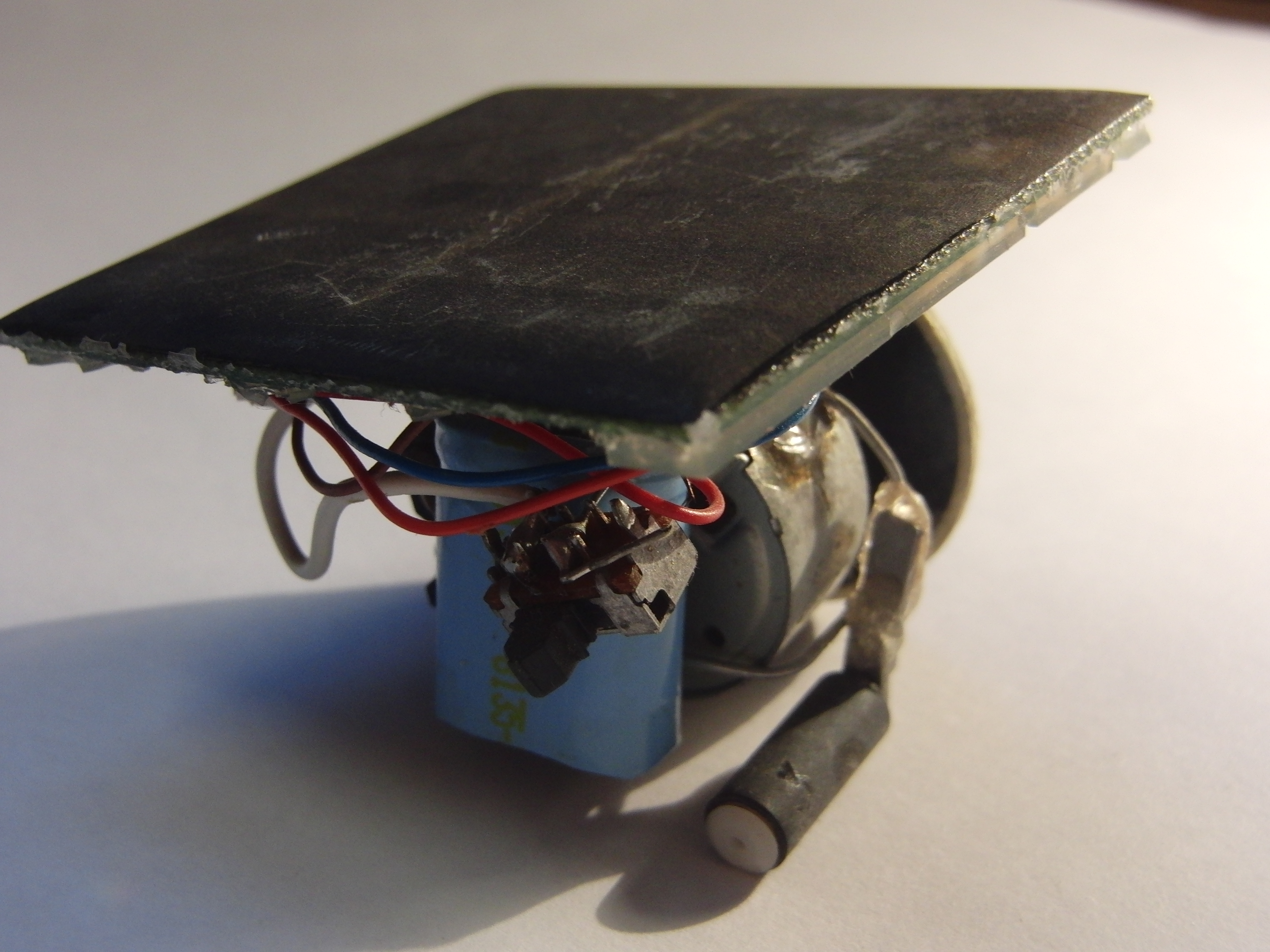

CIMG0438solarrollers2Solar roller is like a miniature light powered dragster. It charges up in the light and then zooms off. Cost $7.54
Parts used: (Bolded parts are from trash) blinker circuit from a flashing lollipop, motor, diode, wires (all), and plastic wheel from a portable CD player, resistor from an answering machine, NPN and PNP transistor from a paper shredder, power switch from a portable cassette player, solar cell from a solar garden lamp, 2 pinch rollers from a cassette player, house wire, rubber band $.02, .22F super capacitor $7.31, 2 paper clips $.01, epoxy $.19, solder $.01


Light Seeking Bot

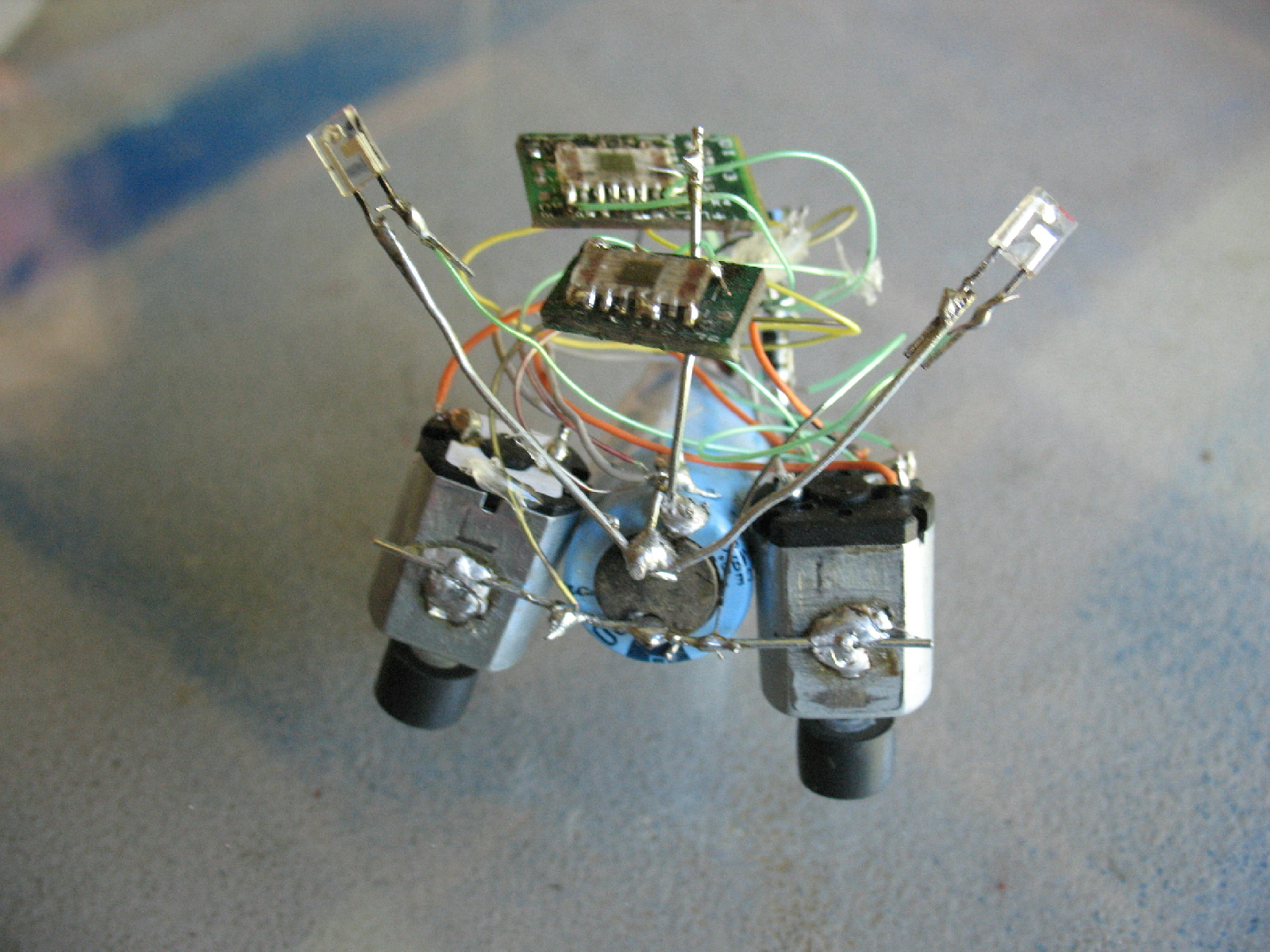

IMG_1515lightseeksLight seeking bot searches for the brightest source of light, and is powered by that light too. Cost $4.33
Parts used: (Bolded parts are from trash) 4700µf capacitor from a computer power supply, 1µf capacitor, 2 motors, diode, NPN transistor, and power switch all from portable CD players, 2 IR LEDs from a trackball computer mouse, LM386 amplifier from a computer modem, 2 pinch roller wheels from cassette players, 2 solar cells $3.26, 1381U voltage trigger $.91, 2 paper clips $.01, wires(all) $.05, epoxy $.09, solder $.01


Walker Bot

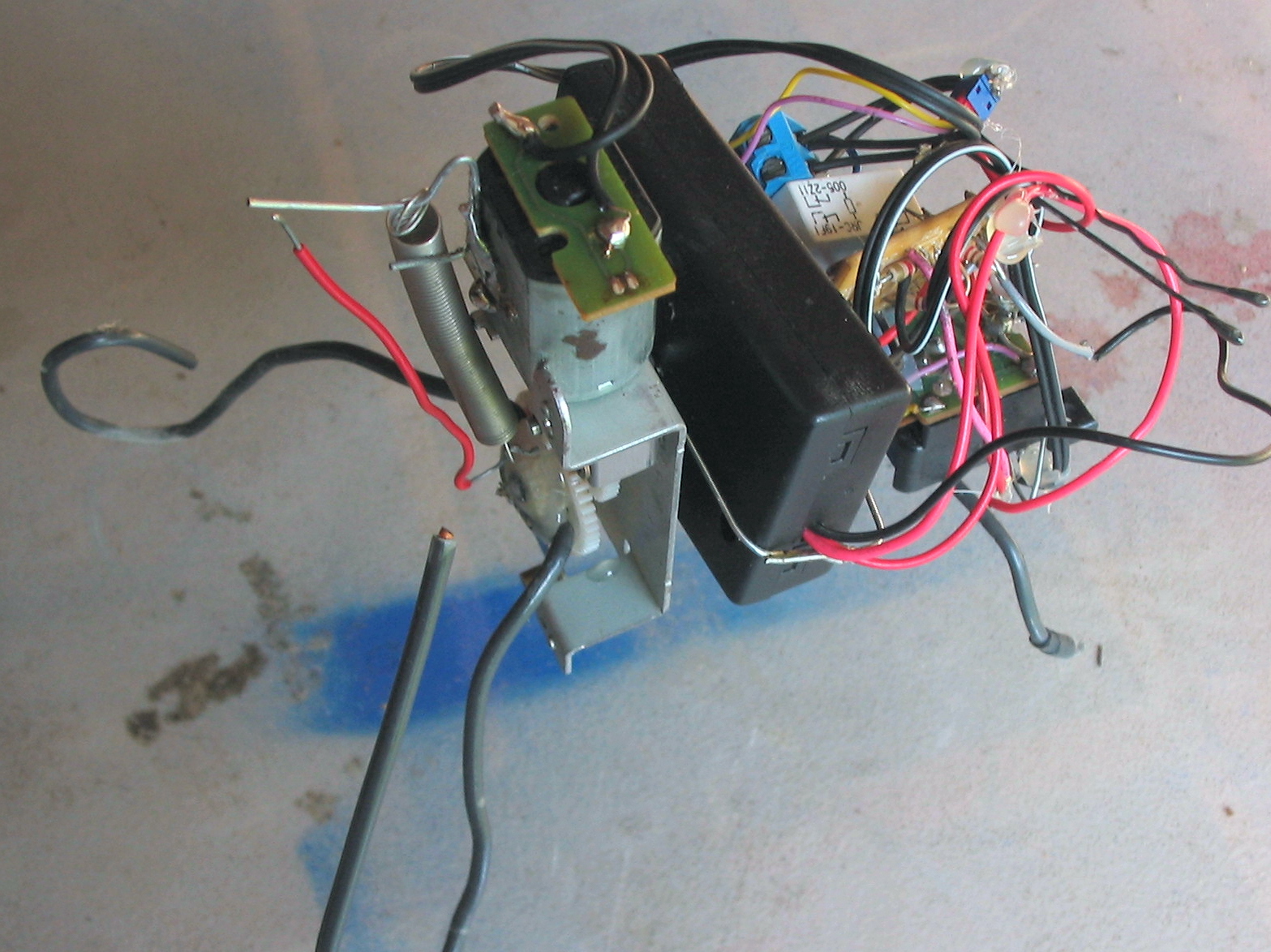

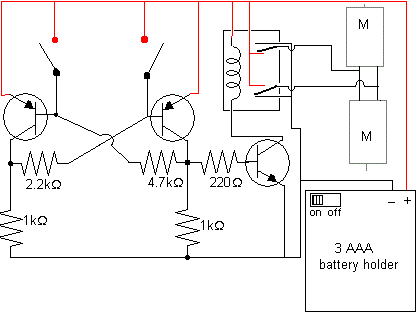

walkerpic3DwalkerbotschematicWalker Bot is a simple walking machine that can go on rougher surfaces. Cost $1.42
Parts used: (Bolded parts are from trash) 2 geared motors from a floppy drive & CD player, 2 switches from a CD-ROM drive, QPDT relay from an answering machine, circuit board from a solar garden lamp, 2 PNP, 1 NPN transistor, 2.2kΩ resistor, and plug in connector from a portable CD player, spring, telephone wire, power switch from an old toy, copper house wire, stranded wire from a copier machine, connector blocks from communications eq., hair clip found on the ground,  2 1kΩ resistors from a TV,  4.7kΩ resistor $.02, 220 Ω resistor $.02, heat shrink $.15, AAA battery holder $.75, 7 paper clips $.08, hot glue $.19, epoxy $.20, solder $.01

See walker bot in action!



Abstract

The purpose of this project is to demonstrate cost savings by using BEAM (Biology, Electronics, Aesthetics, Mechanics) technology in simple robots to do certain tasks that do not require a lot of computing power.

These robots depend more on simple sensors and circuits than processing power. Not having processing power also means less energy used, so batteries will last longer. Several are solar powered, making them almost completely self sufficient by running off sunlight.

Much of the cost savings is from using items found in the trash. Much of the garbage today has electronics in it that can be used for BEAM robots.

The procedures I used were to 1) read about BEAM, 2) build the robots using recycled parts and BEAM technology, and 3) test them with different terrains and conditions. These conditions included a dark room, a bright room, a maze, and other conditions. It also included rocky areas, concrete, carpet, and other terrains.

BEAM robots work great for most simple jobs, such as vacuuming a floor. But their limited processing power makes them unsuitable for more complicated jobs, like building a car.



There are several different variations on what BEAM stands for, this is the most popular version.

Biology– Lots of BEAM roboticists get inspiration from nature because bugs and animals have so many different abilities.

Electronics – BEAM electronics are often very simple.They can use simple chips and trick them to work in ways never thought possible. Doing this helps save costs by not using expensive, power-using microcomputers

Aesthetics– If the robot looks good it often lasts longer in the “wild”. Many BEAM robots use a shell over the whole robot, this protects it from having wires ripped out or solar panels cracked.

Mechanics– Many successful BEAM robots have efficient mechanics. Having good mechanics lessens the amount of work on the electronics, so the robot uses its energy wisely.



Purpose

To test if robots built with BEAM technology are cost effective.

Hypothesis

By using BEAM technology these robots will be able to perform complex functions and still be cost effective. Much of the cost effectiveness comes from using items found in the trash and not having microcomputers or programmable parts.



Data

Feeler Bot
test1maze

Test 1: Simple maze. Feeler bot would keep driving close to the left side of the maze. It completed the maze in 6 seconds.

livroomempty

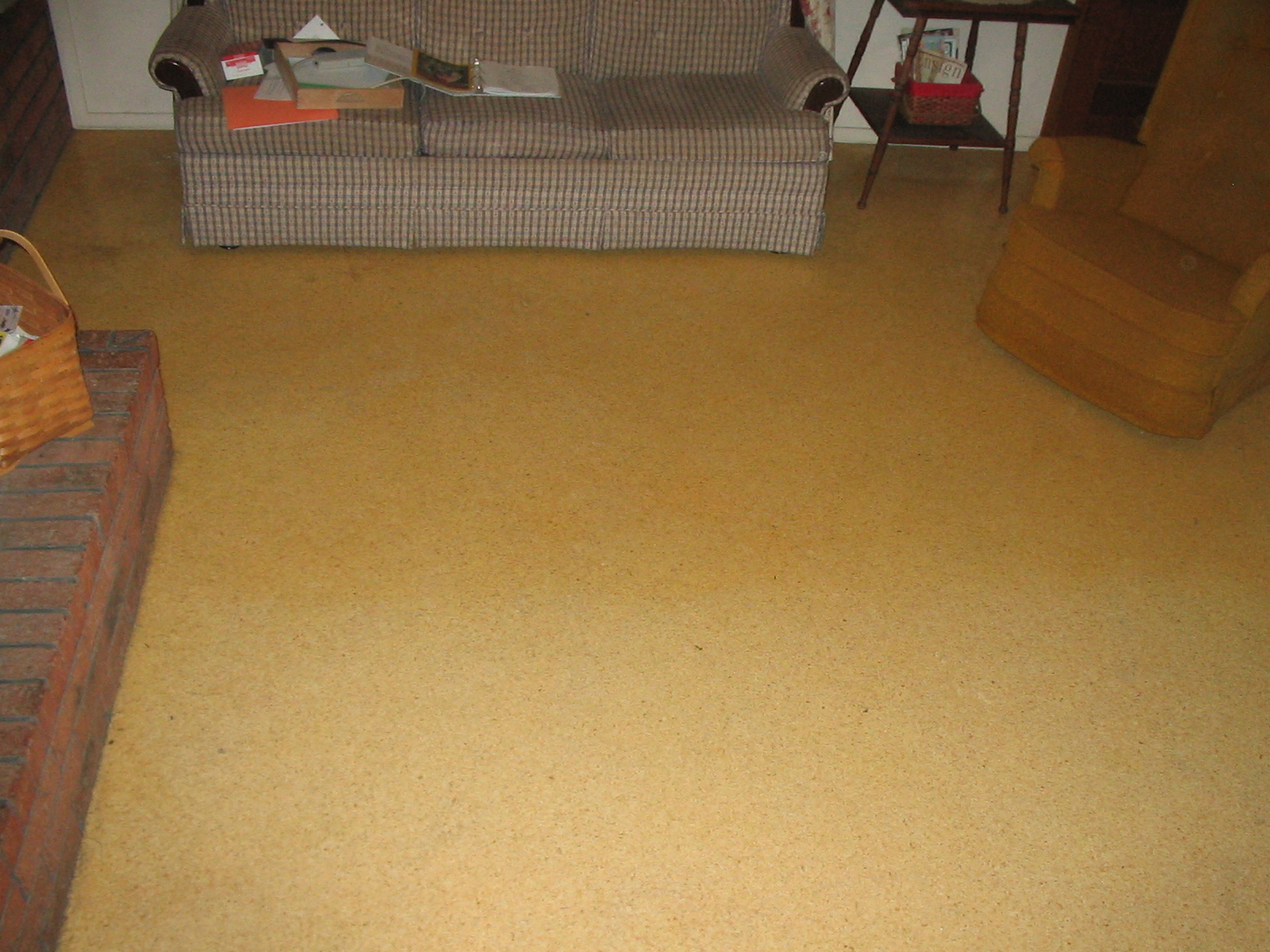

Test 2: Living room. Feeler bot went around in a big circle for 10 minutes, getting past table legs and couches. Then it went under the big couch (not shown) to the other side of the room where it got stuck on a door step too low to sense.

img_7809

Test 3: Cluttered room. Feeler bot went around this test well because there were almost no closed corners. It did, however, bump into the books because its whiskers were too thin and pushed into the pages.

Strengths: posts, open corners, straight walls.
Weaknesses: most closed corners smaller than 165°, objects too low or high to go past but that the whiskers can’t touch.
Solar Roller

Test 1: incandescent lamp

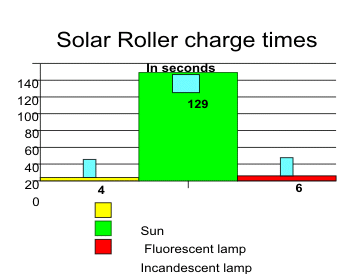

Solar Roller charged up in 6 seconds and then drove 8.5 inches.
The test was with a 60 watt light placed 4 inches above the solar panel.

Test 2: bright sun
Solar Roller charged up in 4 seconds and drove continuously.

Test 3: fluorescent lamp
Solar Roller charged up in 2 minutes, 9 seconds and then drove 4.5 inches The test was with a 13 watt light placed 4 inches above the solar panel.

ole

Strengths: fast charge times, goes far on a single charge
Weaknesses: slow fluorescent charge time
Light Seeking Bot

Test 1: finding a stationary light

LSBfindLITe

Light seeking bot would zigzag to the light, and when it found it, the robot would go around and stay under it. In this test Light Seeking Bot was started 8 inches from the light

Test 2: single light
Light Seeking Bot would go in circles under the lamp, not going out of the circle of light. Since it does not have wall sensors, if the light is brighter next to a wall it will run into the wall and get stuck.

Test 3: following the light
Light Seeking Bot would lag behind the light following it, but just barely staying under the circle of light. Light Seeking Bot started the test under the lamp, then the lamp was incremented 7° every 20 minutes.

Strengths: staying under a light, finding light
Weaknesses: walls, reflective surfaces
Walker Bot

Test 1: flat surface
Walker Bot went 11 inches.

Test 2: slight inclines

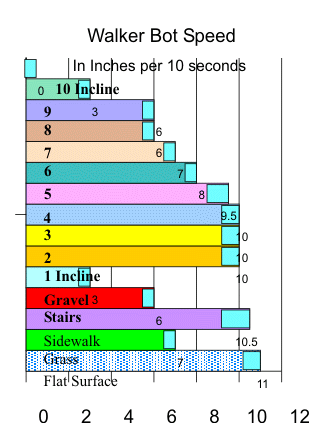

At 1°, 2°, and 3° inclines Walker Bot went 10 inches; at 4°, 9.5 inches; at 5°, 8 inches; at 6°, 7 inches; at 7° and 8°, 6 inches;
at 9°, 3 inches; at 10° it did not move forward at all.

Test 3: grass
Walker Bot went 7 inches.

Test 4: gravel driveway
Walker Bot went 3 inches. The test driveway had gravel that was compacted, but still a little loose.

Test 5: “Robot size” stairs

stairswalker2

Walker Bot could climb the stairs and moved forward 6 inches. It could go down the stairs as well.

Test 6: sidewalk
Walker Bot went 10.5 inches. The test sidewalk was rough concrete with bits of gravel sticking out.
ole1

Strengths: very fast on lightly rough terrains, good at slight inclines
Weaknesses: cannot go on steep inclines, slow on gravel



Current and Future Uses

Recreational uses

There are lots of toy uses, Robosapiens, as well as BioBugs and many other toys use BEAM principles. There are also competitions, such as the International BEAM Robot Games.

Domestic uses

The Roomba and some solar-powered lawn mowers use BEAM principles. Someday there may be window cleaning and table cleaning bots.

Government uses

Many uses are being researched. The Mars Pathfinder is about the closest example to a practical robot device. Another example of BEAMtek in action is with the new “Pixelsats”, or solar-powered BEAM satellites. There has been work done in the field of mine-explosion technology. To date, over 70 functional robotic devices have been constructed. Most are solar powered, are smaller than a telephone, and do not have processor-based controllers. Best of all, they are capable, long-lived, and extremely inexpensive.

Future uses

These autonomous mobile mechanisms have many potential applications from environmental cleanup to space exploration.

(Information taken from an interview with Dave Hrynkiw (dave@solarbotics.com) on April 28, 1998. Also a paper by Mark Tilden entitled, “Biomorphic Robotics, Nervous Networks, and Living Machines”, Physics Division Technology Review, Los Alamos National Laboratory.)

BEAM History

In 1948 William Grey Walter constructed some amazingly simple yet behavior-rich robots using vacuum tube technology.

Rodney Brooks reinitiated the simple robot revolution, but instead of trying to design and program a central robot “brain”, he created a new system. Inspired by insects and other teeny-brained creatures he wondered what a sense-act architecture might look like, one where the bots didn’t bother to create a map of their world to plan from but rather reacted directly to environmental stimuli. In 1991 Rodney Brooks made some very innovative robots which showed some impressive behaviors using only a fraction of the computing power that other robots used.

Many roboticists were inspired by Brooks’ work, and one, Mark Tilden, took the idea even further. After seeing Brooks lecture in the early 90’s, Tilden wondered whether it was possible to create sense-act robots that used no digital computation at all. The answer was yes, and BEAM robotics was born. Tilden chose the acronym BEAM (Biology, Electronics, Aesthetics, Mechanics) to summarize the concepts he thought were the most important to building a successful autonomous (self-guiding) robot.

(Taken from Make Magazine, Volume 6, May 2006, page 54.)

Conclusion

From my experiment I conclude that BEAM robots can perform complex functions and still be cost effective.

Science fair project made in early 2009, this webpage made on February 22, 2016.

5 thoughts on “BEAM Robots

  1. Hello,
    I am not looking to make a robot , but I would like to implement BEAM into a fan.

    I would like the fan to run as normal but if it is touched, it will then reverse itself and then just run until touched again and then just reverse itself and so on…

    Looking to hack a small dc fan to do this.

    Thank you for any help

    I have no experience with this , but have some understanding of electricity and basic components.

    1. Happy to help, I’ll offer some suggestions. First off, I assume you want the fan spinning reversed? As in the fan will suck or blow, depending on current selection? If so, you will need to find a fan with a regular DC motor, not a brushless fan. Probably 95% of computer fans are brushless, and will not work as they have internal electronics. If you reverse the power the fan will not turn on or possible fry the internals. You’re looking for a brushed motor.
      As for the control circuit, there are a couple ways to do it. You can use discrete components, which would need a logic chip and resistors. You could also use a microcontroller, such as the Arduino or a PIC chip. For this simple task, I personally would pick the discrete component option. For this, you need 3 stages. A touch detection circuit, flip-flop, and a motor driver. This site has a circuit which fulfills the first two stages. http://www.learningaboutelectronics.com/Articles/Touch-on-off-circuit-with-a-4011-NAND-gate.php For the motor driver, I would use a relay connected to the output of that circuit. Wire the relay so when it is off the fan gets normal power, and when clicked on the fan gets reversed power. Using a relay like this is shown in the Walker Bot schematic on this BEAM page. Hope this gets you on the right track! Feel free to keep commenting.

      1. Thank you very much. I like both options you provide and realize and arduino could easily do the task. I like the simplicity of your discrete component option , I look forward to giving it a try with the fan and possibly other projects. Thanks again
        I saw the Walkman robot on tv years ago. Maybe when it first aired and had always been intrigued by it, never really knowing it was Beam All along.

      2. I’m am sorry , as I read everything I realize a misunderstanding. When I say it is touched , I should clarify.
        I would like to turn on the fan with what ever switch is provided or i decide to use.
        But then as the fan is running , if the blades are touched enough to stop it or provide too much resistance . Then the fan will automatically reverse itself. Kind of like the walker , but my though is this would protect the motor in a way yet keep it moving as it’s not really important if it’s blowing or sucking .
        Sorry for not describing it properly at first.
        Thanks

        1. Sorry for the late reply, I’ve been quite busy with homework. Ok, so it sounds like you want something that senses an excess current. When the fan is stopped it will draw more current as the motor is trying to overcome the obstacle. My walker bot uses two switches to handle the reversing, see its page http://robowarner.com/portfolio/beam-walker-bot/ . You could get a chip that senses current, as shown here http://www.societyofrobots.com/sensors_currentsensor.shtml . Or you can research on how to build a current sense circuit with op amps. The current sense circuit would be connected before the switching relay, that way the current is flowing the same way for either fan direction. So when the current is above a certain amount, it can trigger a flip flop, which in turn activates the relay to change the fan direction. One example of a flip flop is shown here http://circuitdiagramcentre.blogspot.com/2014/03/transistor-bistable-flip-flop-circuits.html . There are many ways to do this circuit, I’ve simply provided some pointers. Hope this gets you on the right track!
